# Tesla Walkthrough Videos

With Tesla vehicles, you will need to remove a plastic trim panel to locate the OBD diagnostic port. Then you can connect an adaptor cable and plug in the Lyteflo device. The adaptor cables are labelled.

**Below you will find a list of OBD port locations and walkthrough videos for different Tesla models.**



### **Jump to:**

[**Model 3 (2018)**](https://support.lyteflo.com/where-can-i-find-the-obd-port-in-a-tesla-and-how-do-i-connect-the-adaptor#Model_3_2018)

[**Model 3 (2019-2023)**](https://support.lyteflo.com/where-can-i-find-the-obd-port-in-a-tesla-and-how-do-i-connect-the-adaptor#Model_3_2019-2023)

[**Model 3 (2024+)**](https://support.lyteflo.com/where-can-i-find-the-obd-port-in-a-tesla-and-how-do-i-connect-the-adaptor#Model_3_Highland_2023plus)

[**Model Y (2020-2024)**](https://support.lyteflo.com/where-can-i-find-the-obd-port-in-a-tesla-and-how-do-i-connect-the-adaptor#Model_Y_2020-2024)

**[Model Y (2025+)](https://support.lyteflo.com/where-can-i-find-the-obd-port-in-a-tesla-and-how-do-i-connect-the-adaptor#Model_Y_Juniper_2024plus)**

**[Model S & Model X (2016-2020)](https://support.lyteflo.com/where-can-i-find-the-obd-port-in-a-tesla-and-how-do-i-connect-the-adaptor#Model_S_Model_X_2015-2020)**

**[Model S & Model X (2021+)](https://support.lyteflo.com/where-can-i-find-the-obd-port-in-a-tesla-and-how-do-i-connect-the-adaptor#Model_S_Model_X_2021-2025)**

### **Model 3 (2018)**

**OBD Port Location:** Under the rear passenger AC vent in the center console.

**Demo Video:**

*Note: The video below mentions 2019-2024. The 2018 Model 3's port is in the same location, it just uses a different adaptor cable.*

<iframe data-hsv-src="https://play.hubspotvideo.com/v/46587111/id/208444010578" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="208444010578" data-hsv-style="" data-hsv-width="1920" data-hsv-height="1080" data-hsv-autoplay="false" data-hsv-loop="false" data-hsv-muted="false" data-hsv-hidden-controls="false" data-hsv-full-width="false"></iframe>





### **Model 3 (2019-2023)**

**OBD Port Location:** Under the rear passenger AC vent in the center console.

**Demo Video:**

<iframe data-hsv-src="https://play.hubspotvideo.com/v/46587111/id/208444010578" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="208444010578" data-hsv-style="" data-hsv-width="1920" data-hsv-height="1080" data-hsv-autoplay="false" data-hsv-loop="false" data-hsv-muted="false" data-hsv-hidden-controls="false" data-hsv-full-width="false"></iframe>





### **Model 3 (2024+)**

**OBD Port Location:** Near passenger side door panel.

**Demo Video:**

<iframe width="256" height="144.64" src="https://www.youtube.com/embed/zvdsNS7AtWc?feature=oembed" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen title="How to install OBD adapter and S3XY buttons in Tesla Model 3 Highland" style="position: absolute; top: 0px; left: 0px; width: 100%; height: 100%; border: none;"></iframe>



**<https://www.youtube.com/watch?v=zvdsNS7AtWc>**

### **Model Y (2020-2024)**

**OBD Port Location:** Under the rear passenger AC vent in the center console.

**Demo Video:**

<iframe data-hsv-src="https://play.hubspotvideo.com/v/46587111/id/208444010578" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="208444010578" data-hsv-style="" data-hsv-width="1920" data-hsv-height="1080" data-hsv-autoplay="false" data-hsv-loop="false" data-hsv-muted="false" data-hsv-hidden-controls="false" data-hsv-full-width="false"></iframe>





### **Model Y (2025+)**

*\*Note: If your 2025 Model Y was built late in 2024 or early in 2025 ("pre-refresh"), please follow the instructions for  [Model Y 2020-2024](https://support.lyteflo.com/where-can-i-find-the-obd-port-in-a-tesla-and-how-do-i-connect-the-adaptor#Model_Y_2020-2024).*

**OBD Port Location:** Near passenger side door panel.

**Demo Video:**

<iframe width="256" height="144.64" src="https://www.youtube.com/embed/agoHHfryiZc?feature=oembed" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen title="How to Connect OBD2 to a 2026 Tesla Model Y Juniper" style="position: absolute; top: 0px; left: 0px; width: 100%; height: 100%; border: none;"></iframe>





### **Model S & X (2016-2020)**

**OBD Port Location:** Under the main display screen in the center console, there is a small shelf that can be removed by pushing down.

**Demo Video:**

<iframe data-hsv-src="https://play.hubspotvideo.com/v/46587111/id/214712068459" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="214712068459" data-hsv-style="" data-hsv-width="1920" data-hsv-height="1080" data-hsv-autoplay="false" data-hsv-loop="false" data-hsv-muted="false" data-hsv-hidden-controls="false" data-hsv-full-width="false"></iframe>



With Tesla vehicles, you will need to remove a plastic trim panel to locate the OBD diagnostic port. Then you can connect an adaptor which will allow you to plug in the Lyteflo device. The adaptor cables are labelled.



### **Model S & X (2021+)**

\*Note: Some 2021 Model S & X that were built early in the year of 2021 will look like the pre-2021 vehicles and you should follow the instructions for [Model S & X 2016-2020](https://support.lyteflo.com/where-can-i-find-the-obd-port-in-a-tesla-and-how-do-i-connect-the-adaptor#Model_S_Model_X_2015-2020).

**OBD Port Location:** Under the center console display screen behind a small panel.

**Demo Videos:**

**Step 1 -** Remove the panel.

<iframe data-hsv-src="https://play.hubspotvideo.com/v/46587111/id/216907917408?autoplay=true&amp;loop=true&amp;muted=true&amp;hidden_controls=true" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="216907917408" data-hsv-style="" data-hsv-width="360" data-hsv-height="640" data-hsv-autoplay="true" data-hsv-loop="true" data-hsv-muted="true" data-hsv-hidden-controls="true" data-hsv-full-width="false"></iframe>

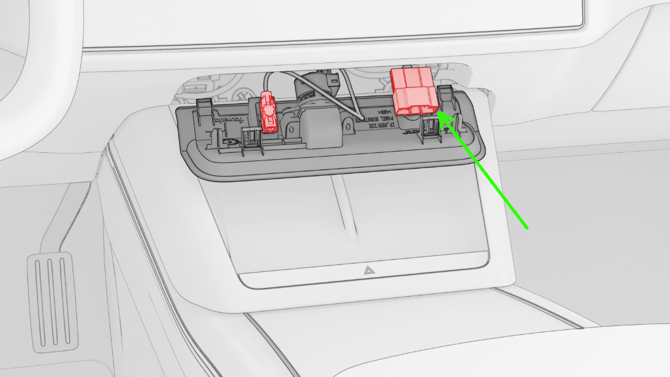

**Step 2 -** Rotate or pop out the blue connector on the right to free up space to plug in the adaptor cable. (Don't worry, it will pop back in after).

![](https://support.lyteflo.com/hs-fs/hubfs/Screenshot%202026-07-10%20at%202-57-16%E2%80%AFPM-png.png?width=670&height=377&name=Screenshot%202026-07-10%20at%202-57-16%E2%80%AFPM-png.png)



<iframe data-hsv-src="https://play.hubspotvideo.com/v/46587111/id/216913638937?autoplay=true&amp;loop=true&amp;muted=true&amp;hidden_controls=true" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="216913638937" data-hsv-style="" data-hsv-width="1280" data-hsv-height="720" data-hsv-autoplay="true" data-hsv-loop="true" data-hsv-muted="true" data-hsv-hidden-controls="true" data-hsv-full-width="false"></iframe>



**Step 3 -** Connect your adaptor cable, then you're ready to scan!
